跳跃表(Skip List)

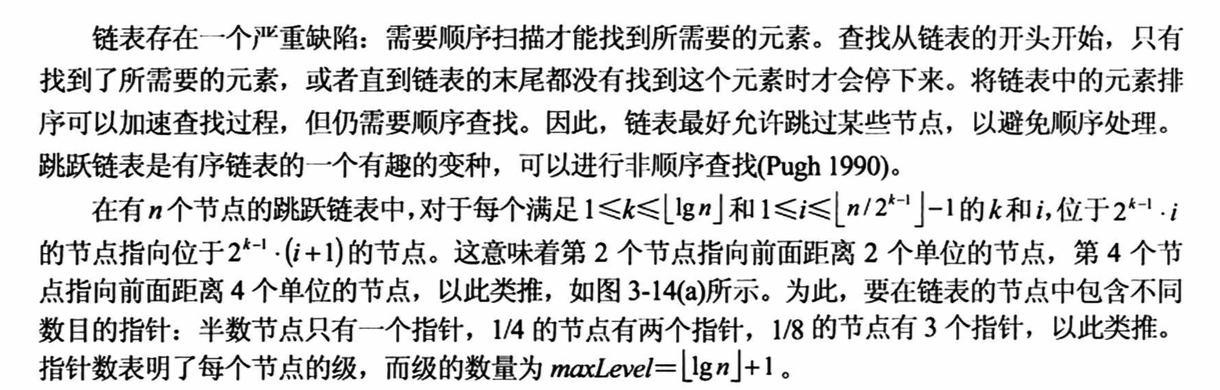

跳跃表描述

c++数据结构与算法

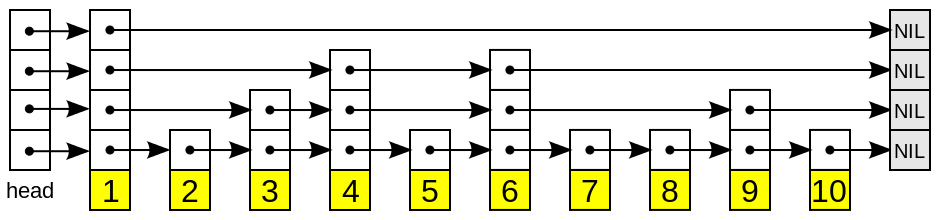

A schematic picture of the skip list data structure

跳跃表的重要性质:

  1. 一个跳表应该有几个层(level)组成;
  2. 跳表的第一层包含所有的元素
  3. 每一层都是一个有序的链表
  4. 如果元素x出现在第i层,则所有比i小的层都包含x
  5. 第i层的元素通过一个down指针指向下一层拥有相同值的元素
  6. Head指针指向最高层的第一个元素

Skip List构造步骤:

  1. 给定一个有序的链表。
  2. 选择连表中最大和最小的元素,然后从其他元素中按照一定算法(随机)随即选出一些元素,将这些元素组成有序链表。这个新的链表称为一层,原链表称为其下一层。
  3. 为刚选出的每个元素添加一个指针域,这个指针指向下一层中值同自己相等的元素。Top指针指向该层首元素
  4. 重复2、3步,直到不再能选择出除最大最小元素以外的元素。

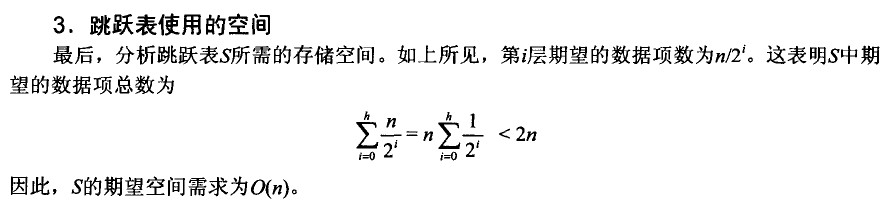

Skip List 概率分析

image.png image.png image.png

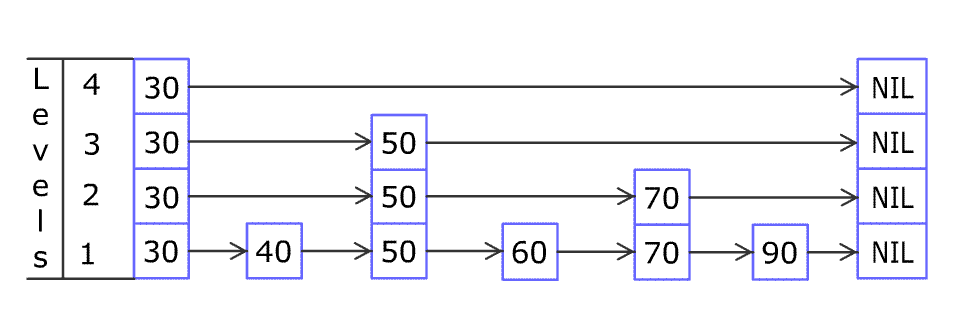

Skip list add element


跳跃表java实现

/***************************  SkipList.java  *********************/

import java.util.Random;

public class SkipList<T extends Comparable<? super T>> {
    private int maxLevel;
    private SkipListNode<T>[] root;
    private int[] powers;
    private Random rd = new Random();
    SkipList() {
        this(4);
    }
    SkipList(int i) {
        maxLevel = i;
        root = new SkipListNode[maxLevel];
        powers = new int[maxLevel];
        for (int j = 0; j < maxLevel; j++)
            root[j] = null;
        choosePowers();
    }
    public boolean isEmpty() {
        return root[0] == null;
    }
    public void choosePowers() {
        powers[maxLevel-1] = (2 << (maxLevel-1)) - 1;    // 2^maxLevel - 1
        for (int i = maxLevel - 2, j = 0; i >= 0; i--, j++)
           powers[i] = powers[i+1] - (2 << j);           // 2^(j+1)
    }
    public int chooseLevel() {
        int i, r = Math.abs(rd.nextInt()) % powers[maxLevel-1] + 1;
        for (i = 1; i < maxLevel; i++)
            if (r < powers[i])
                return i-1; // return a level < the highest level;
        return i-1;         // return the highest level;
    }
    // make sure (with isEmpty()) that search() is called for a nonempty list;
    public T search(T key) {
        int lvl;
        SkipListNode<T> prev, curr;            // find the highest nonnull
        for (lvl = maxLevel-1; lvl >= 0 && root[lvl] == null; lvl--); // level;
        prev = curr = root[lvl];
        while (true) {
            if (key.equals(curr.key))          // success if equal;
                 return curr.key;
            else if (key.compareTo(curr.key) < 0) { // if smaller, go down,
                 if (lvl == 0)                 // if possible
                      return null;
                 else if (curr == root[lvl])   // by one level
                      curr = root[--lvl];      // starting from the
                 else curr = prev.next[--lvl]; // predecessor which
            }                                  // can be the root;
            else {                             // if greater,
                 prev = curr;                  // go to the next
                 if (curr.next[lvl] != null)   // non-null node
                      curr = curr.next[lvl];   // on the same level
                 else {                        // or to a list on a lower level;
                      for (lvl--; lvl >= 0 && curr.next[lvl] == null; lvl--);
                      if (lvl >= 0)
                           curr = curr.next[lvl];
                      else return null;
                 }
            }
        }
    }
    public void insert(T key) {
        SkipListNode<T>[] curr = new SkipListNode[maxLevel];
        SkipListNode<T>[] prev = new SkipListNode[maxLevel];
        SkipListNode<T> newNode;
        int lvl, i;
        curr[maxLevel-1] = root[maxLevel-1];
        prev[maxLevel-1] = null;
        for (lvl = maxLevel - 1; lvl >= 0; lvl--) {
            while (curr[lvl] != null && curr[lvl].key.compareTo(key) < 0) {
                prev[lvl] = curr[lvl];           // go to the next
                curr[lvl] = curr[lvl].next[lvl]; // if smaller;
            }
            if (curr[lvl] != null && key.equals(curr[lvl].key)) // don't
                return;                          // include duplicates;
            if (lvl > 0)                         // go one level down
                if (prev[lvl] == null) {         // if not the lowest
                      curr[lvl-1] = root[lvl-1]; // level, using a link
                      prev[lvl-1] = null;        // either from the root
                }
                else {                           // or from the predecessor;
                     curr[lvl-1] = prev[lvl].next[lvl-1];
                     prev[lvl-1] = prev[lvl];
                }
        }
        lvl = chooseLevel();                // generate randomly level
        newNode = new SkipListNode<T>(key,lvl+1); // for newNode;
        for (i = 0; i <= lvl; i++) {        // initialize next fields of
            newNode.next[i] = curr[i];      // newNode and reset to newNode
            if (prev[i] == null)            // either fields of the root
                 root[i] = newNode;         // or next fields of newNode's
            else prev[i].next[i] = newNode; // predecessors;
        }
    }
}
